Specialized Allez Sprint vs Trek Emonda ALR — which aluminium race bike will win this epic showdown?

Which of the latest and greatest alloy road bikes is best? Here's how they compare, and things to consider before buying

A few years ago, it looked like alloy bikes were all but dead; however, in 2023 they still represent a very real and very competitive alternative to carbon.

With Trek’s latest aluminium road bike release a few weeks ago, the third generation Emonda ALR, two of the biggest brands in cycling, Trek and Specialized, now have bang-up-to-date performance aluminium bikes. But which is best? Here's a closer look at the weights, specs and geometry to help you decide which is best for you...

Alloy bikes are back!

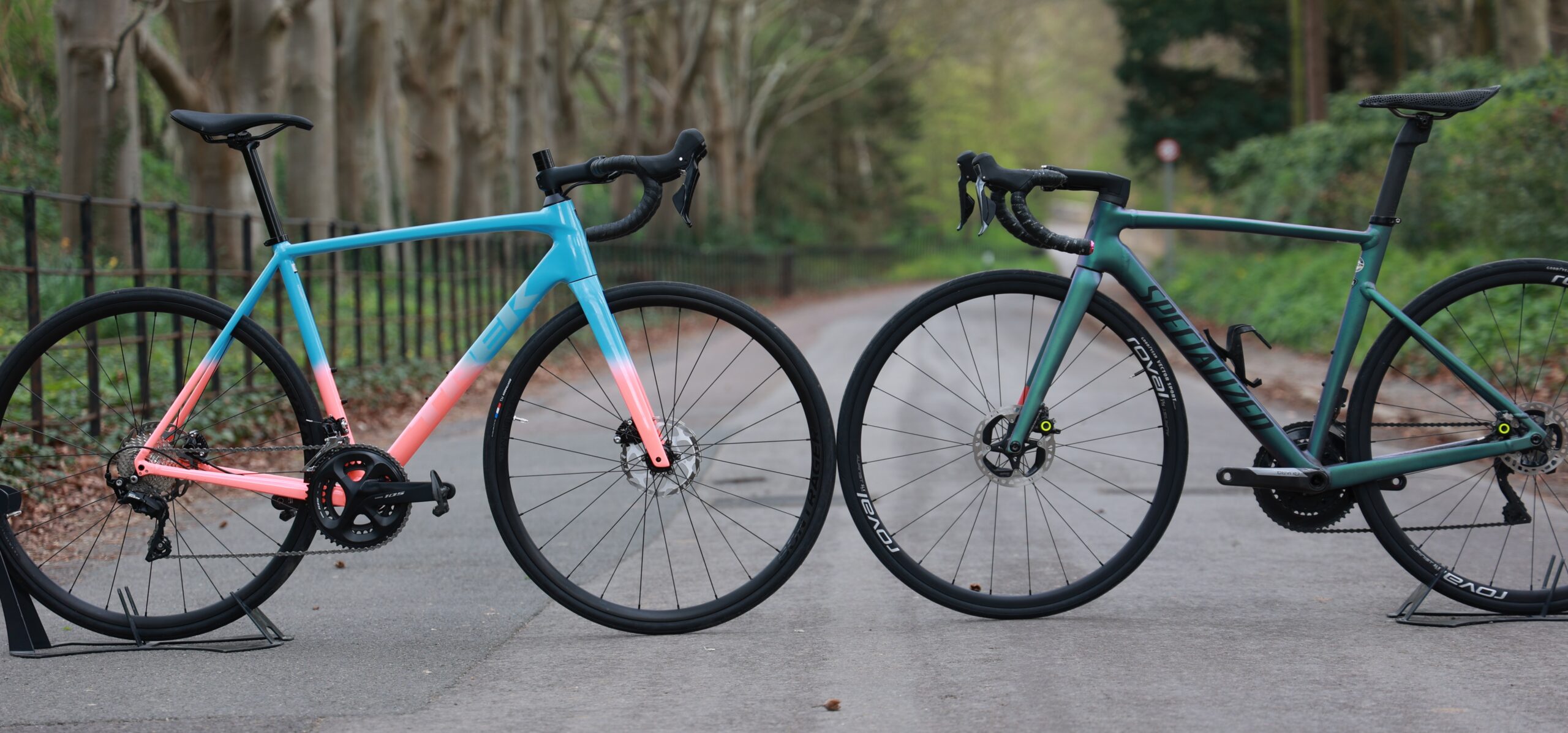

2023 trek Emonda ALR vs Specialized allez sprint alloy bikes

There was a point in time, roughly five years ago, when carbon performance machines were getting cheaper and cheaper. Having an aluminium bike often meant sacrificing either aerodynamics, weight, comfort, tyre clearance or in some cases a combination of all of the above!

> Opinion: "Aluminium frames are the work of the devil"

However, in the last few years, we’ve since seen a resurgence of bikes made of metal and not just at the lower end of brand's ranges. I was so impressed with the recent development in alloy tech that when purchasing a bike for racing, training and filming on, I opted for this Specialized Allez Sprint.

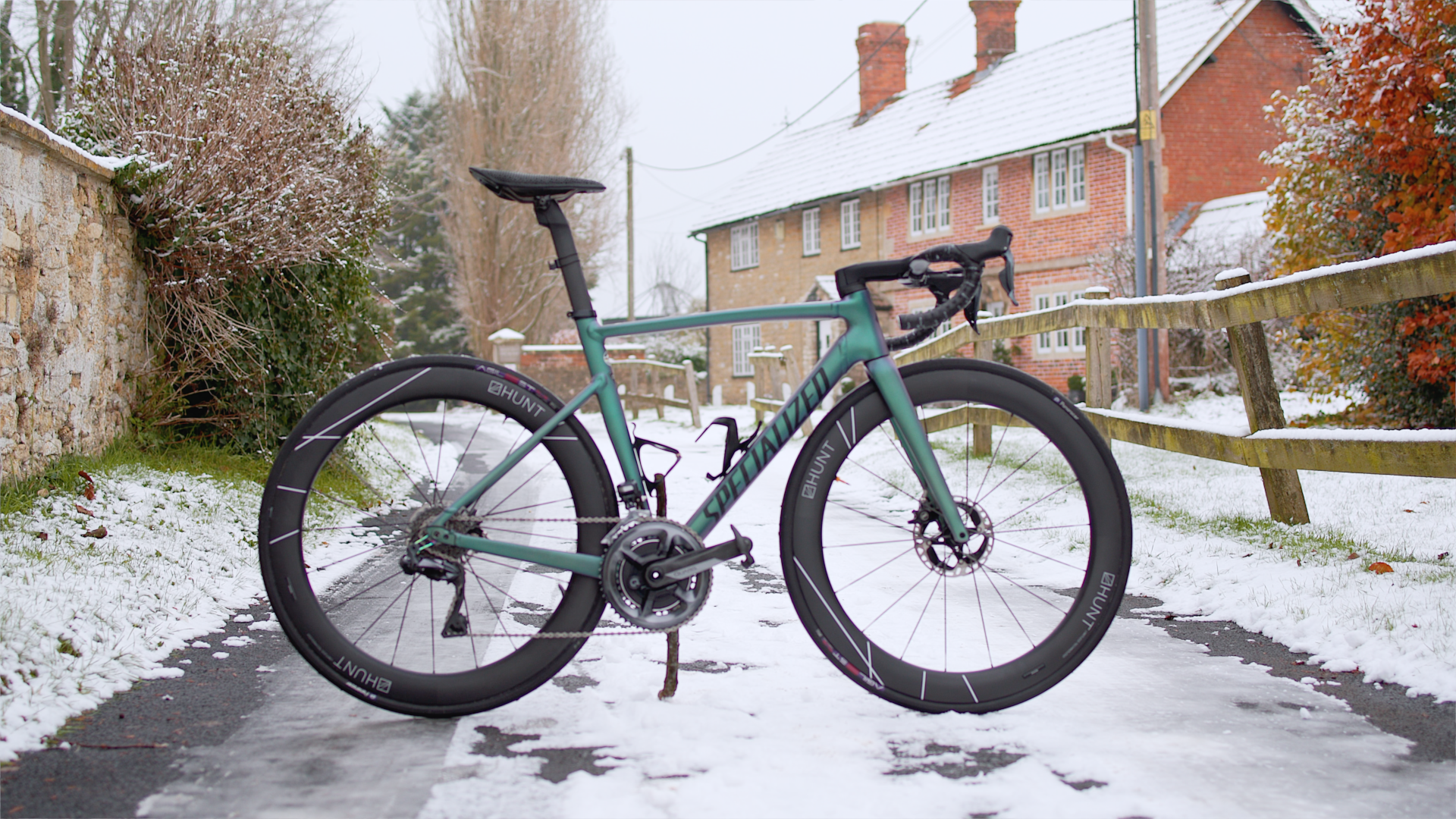

2022 Jamie's Specialized allez sprint build

> Staff Bikes: Jamie's custom Specialized Allez Sprint Disc

Trek, eager to not be left behind, has brought its Emonda ALR bang up to date with this third generation featuring Kammtail aero tubing and fully integrated cables.

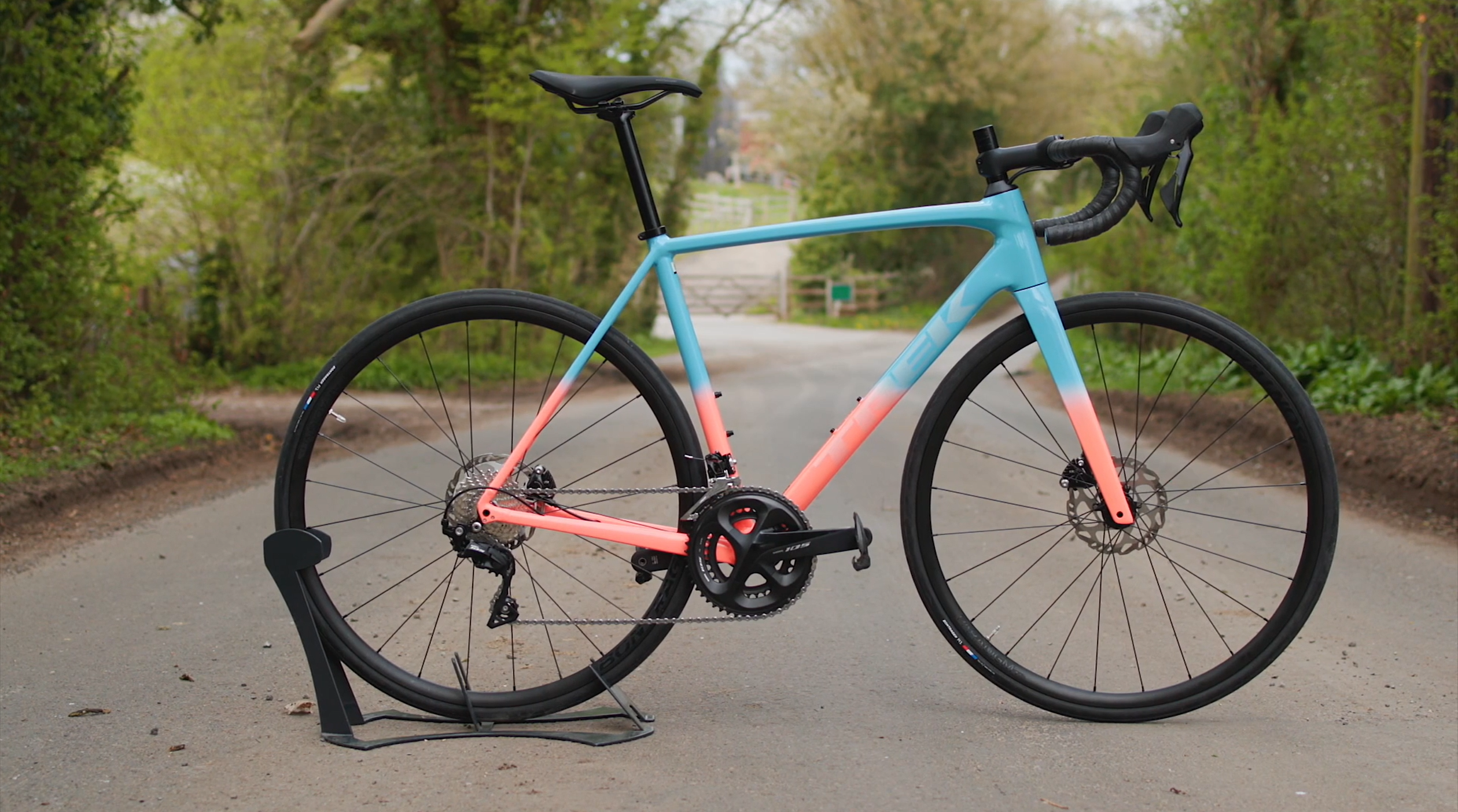

2023 Trek Emonda ALR5 full bike

Trek claims that it’s “affordable, ultra-lightweight and faster than ever”, but is it good enough to beat the Allez Sprint? Let’s find out if I should have waited before spending my hard-earned cash on an alloy superbike...

A closer look at the frames

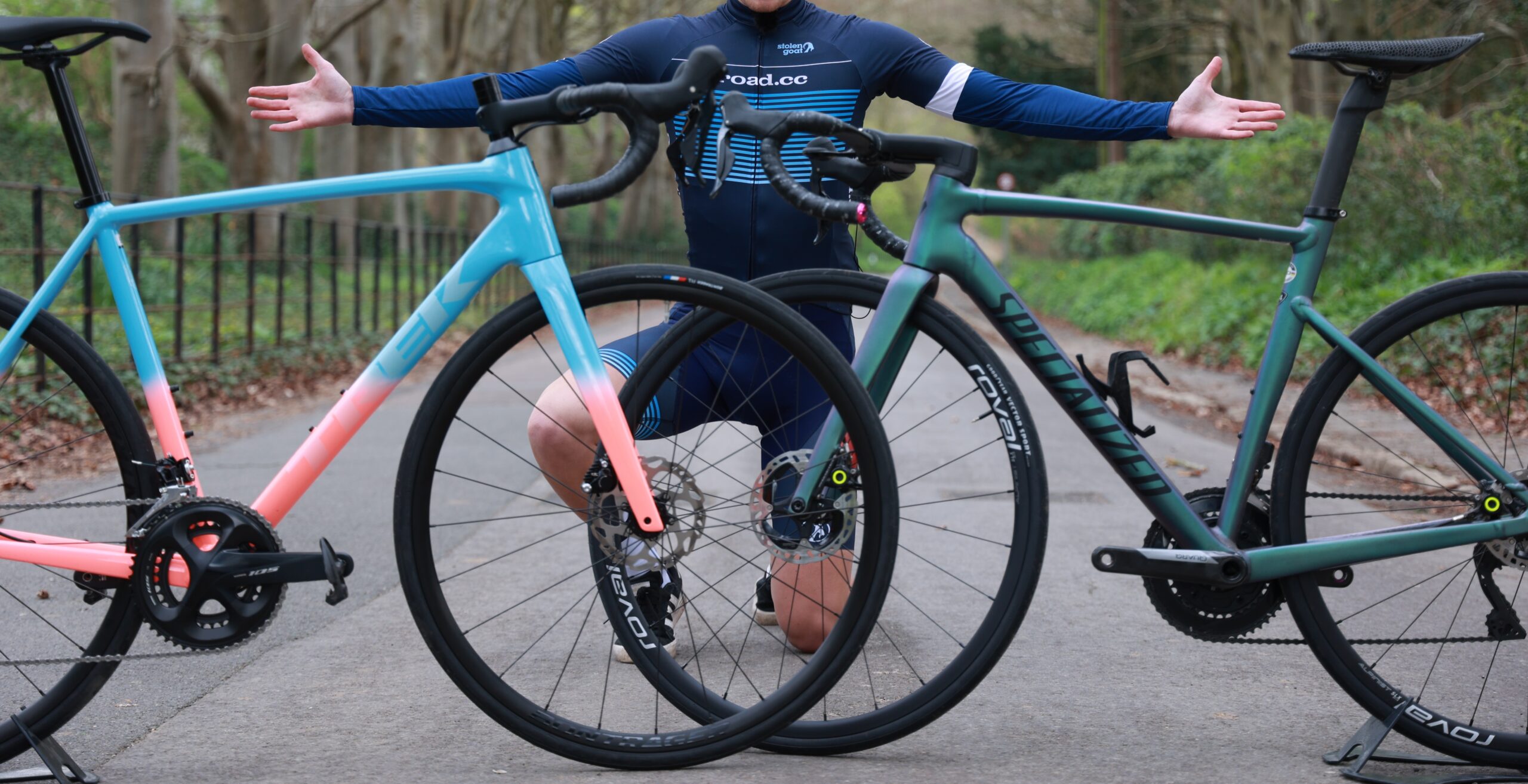

2023 trek Emonda ALR vs Specialized allez sprint alloy bike frames

> Best road bikes 2023 — find your perfect drop bar bike whatever your budget

Call me vain, but a big part of any of my bike purchasing decisions comes down to looks. I personally think it’s important to like what you’re riding. After all, morale will make a far bigger difference to your riding ability than most other marginal gains!

Welding

The Allez’ looks are perhaps not its strong point... just look at these welds! Specialized claims that “smartwelding” its hydroformed tubes together is both stronger and results in a lighter bike (more on that further down the page).

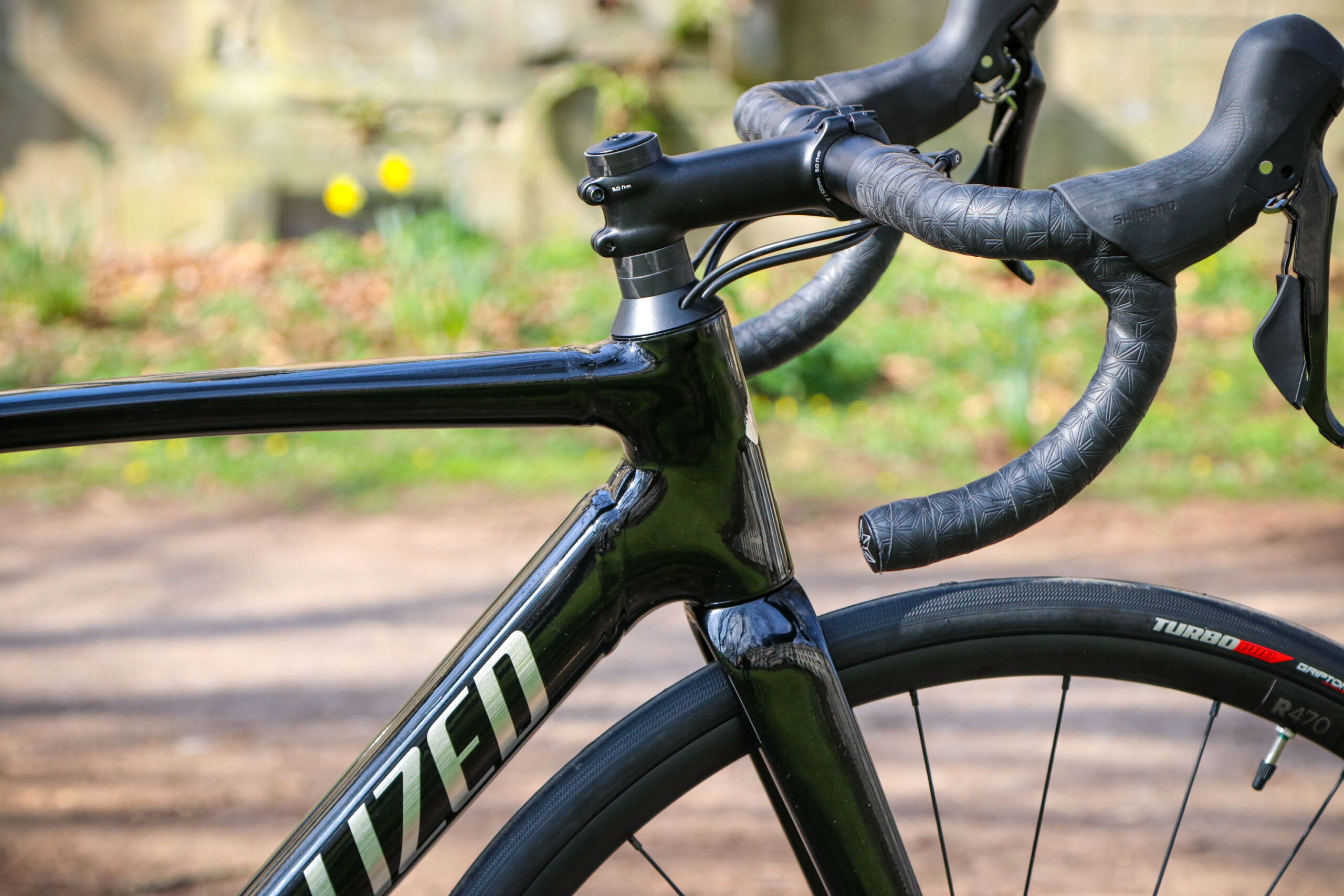

2022 Specialized Allez Sprint Comp - head tube.jpg

> Your complete guide to bike frame materials — Should you choose carbon, steel, aluminium, titanium?

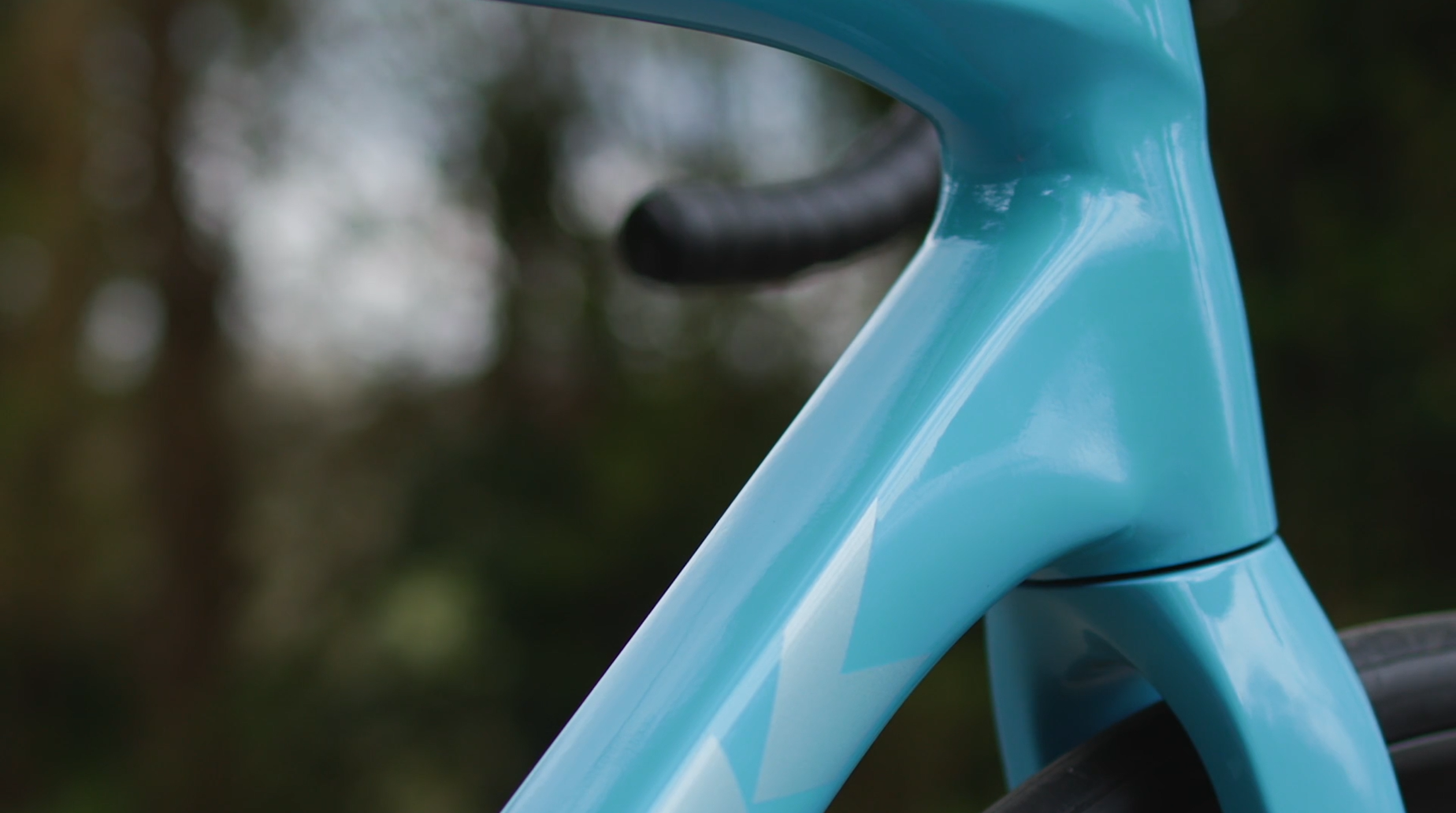

Trek, meanwhile, uses its “invisible” weld technology, Okay, ‘invisible’ might be pushing it, but the welds are certainly inconspicuous at first glance.

The welds at the bottom of the seat stays are noticeable if you go looking, but the head tube and seat tube junctions do look almost like carbon, which I guess is the impression that Trek is shooting for.

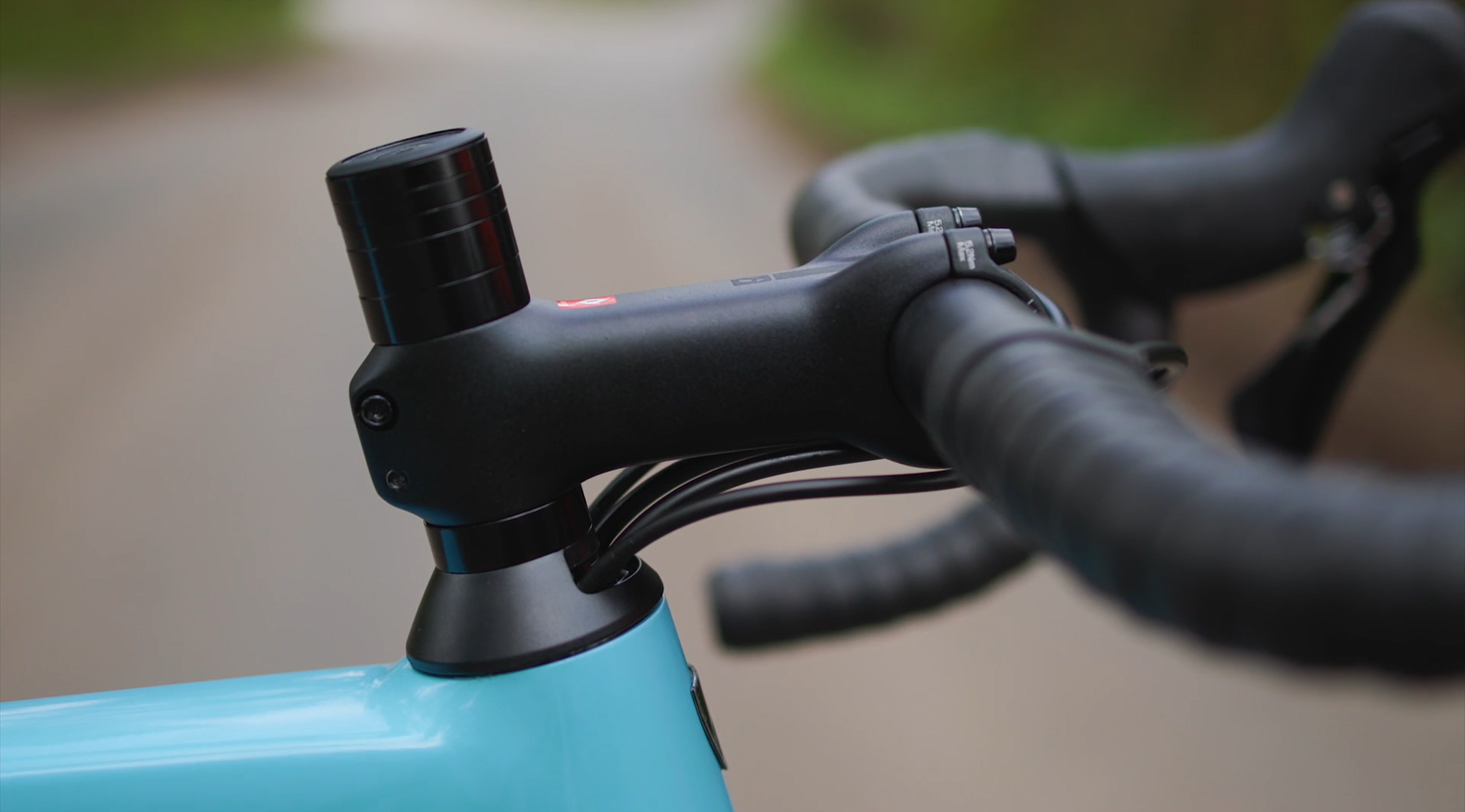

2023 Trek Emonda ALR5 integrated cables headset

Integrated cables

Like them or loath them, both of the bikes now fully integrate their cables; however, from the factory both use very similar designs where the brake hoses and gear cables (if required) run under the stem, and then into the frame via holes in the headset bearing cover at the top of the head tube (as shown on the Emonda above).

They then pass through the upper headset bearing and then down the downtube to the mechs and rear brake.

2023 Trek Emonda ALR5 riding shot 2 Jamie road.cc kit

This has both pros and cons. Both manufacturers claim an aero advantage, although neither specifies how much. We’d suggest in the region of 2-3 watts at 40kph, i.e. negligible for most riders. It does arguably look neater though…

Obviously, the negatives of such a design are going to be set up and serviceability. If your headset bearings need replacing, then that’s a few hours of yours or your mechanic's life that can't be got back! And the trickier routing will drive many riders to a bike shop.

If you’re looking for a bike that forgoes the additional hassle of integrated lines, then neither of these bikes is for you. I’d suggest keeping your eye out for a previous generation of either.

Tube shapes

2023 Trek Emonda ALR5 kammtail tubing

As previously mentioned, Trek has moved away from its more traditional tube shapes and gone for Kammtail tubing, where the trailing edge of the tube is squared off. This should be more aerodynamic than the previous generation Emonda, but without a wind tunnel, we're unable to validate this claim. Which do you think is the prettier bike though? Let us know in the comments section below as always.

The Allez also utilizes Kammtail tube profiles, perhaps to an even greater degree as the seat tube and seatpost are not round either. This means that on the Allez, you do have to use the proprietary seatpost which happens to be the same as on the Tarmac SL7.

Colour options

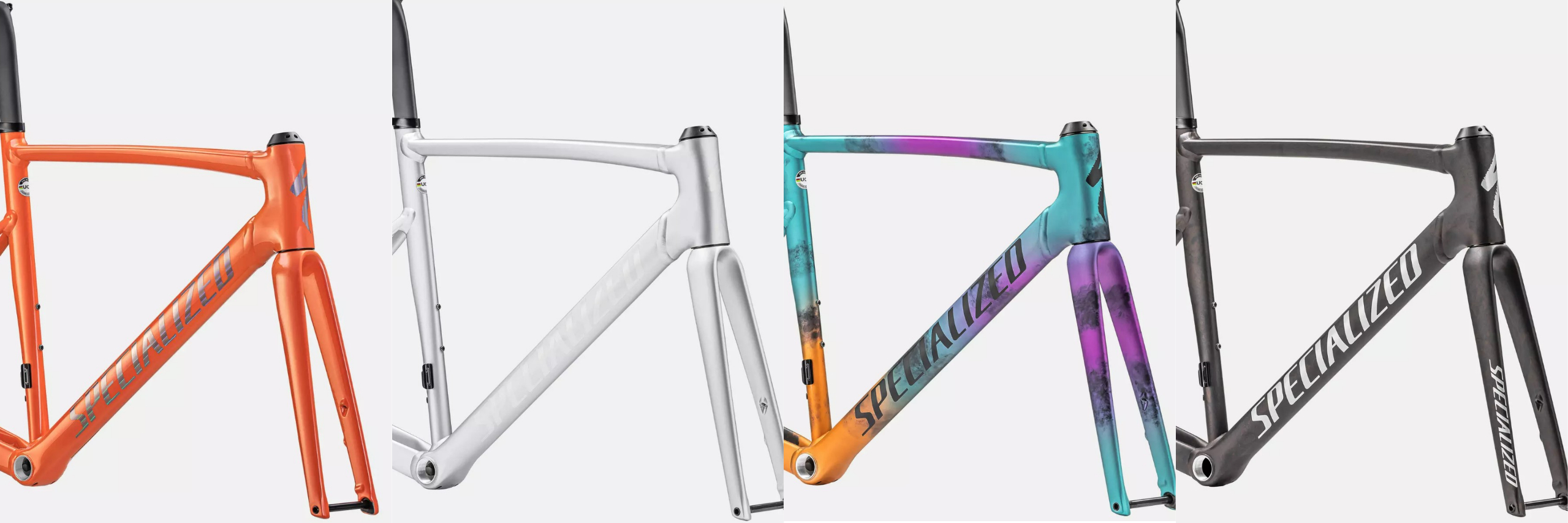

2023 Specialized Allez sprint colour options paint

When talking about colour schemes, it’s the Allez that rules the roost. In the UK the Allez is available in four new colours for the frameset in 2023 (shown above) and a further two colours for the full bike. Add on the eight from last year that you can, at the time of writing, still find in shops, and you have a huge variety from subtle to proper garish.

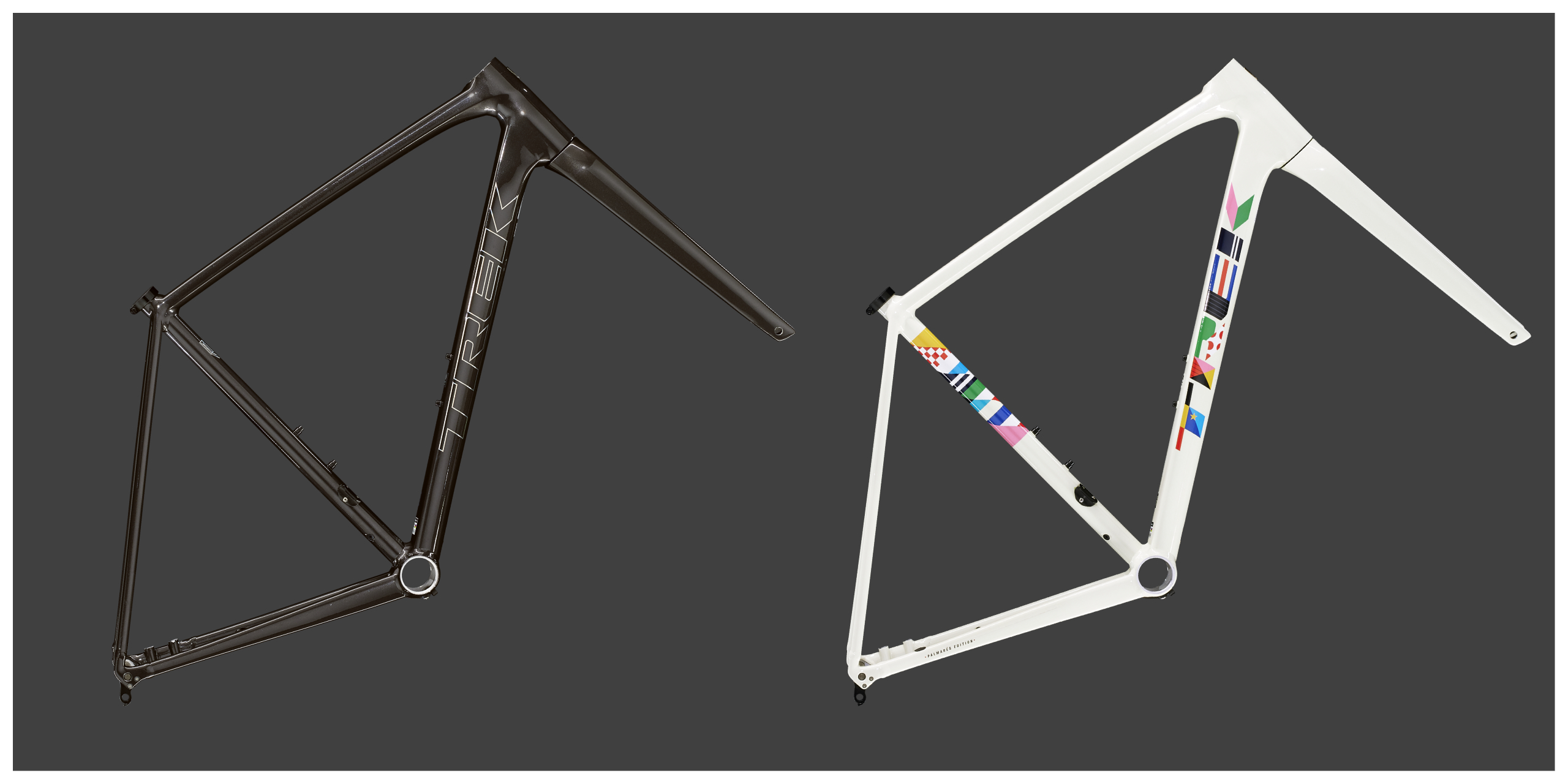

2023 Trek emonda Alr 6 frameset colour options

Trek, meanwhile, offers the latest Emonda ALR in four colour schemes two for the ALR 6 (shown above), and a further two for the ALR 5 including the blue and orange that we have. Even I can do the maths on that one, it's just four colour schemes for now. It has to be said that the two black ones are pretty similar.

Geometry

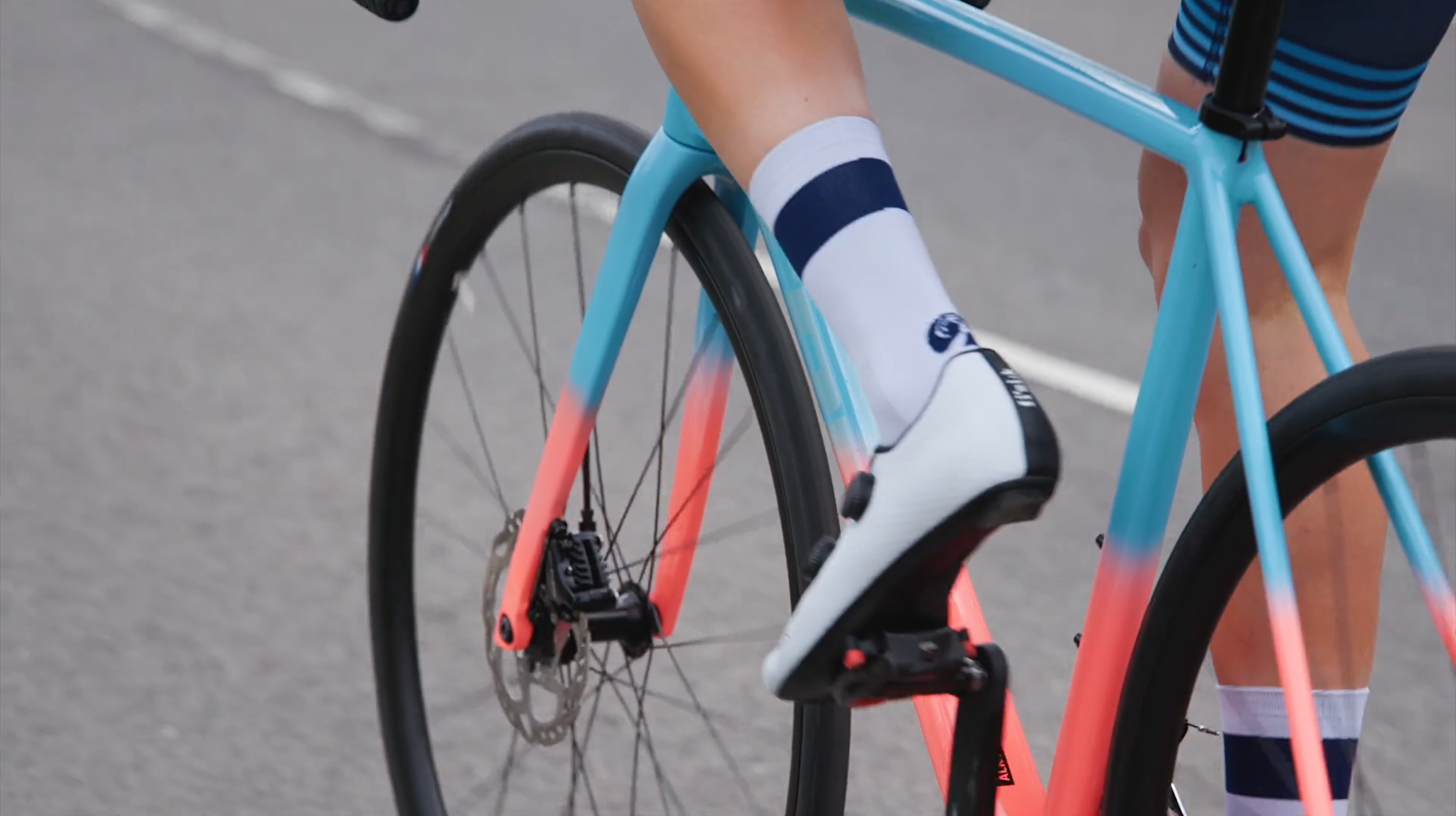

2023 Trek Emonda ALR5 riding shot pedal Jamie road.cc kit

Trek has moved the ALR bikes from their H2 fit to H1.5. Back in the olden days, Trek gave you the option of an aggressive H1 fit or a more relaxed H2 fit on its performance-focused road bikes. This new H1.5 splits the difference really, and is what you’ll find on both Madones and carbon Émondas too.

Trek calls this “an optimised race-specific geometry [that] puts riders in the right position for power while minimising aero losses”.

It has to be said, the geometry of both bikes is very similar. Both are designed to be low-slung race bikes to help you cut through the wind and flick through turns in a criterium race.

> How to read a bike geometry table: the numbers made easy

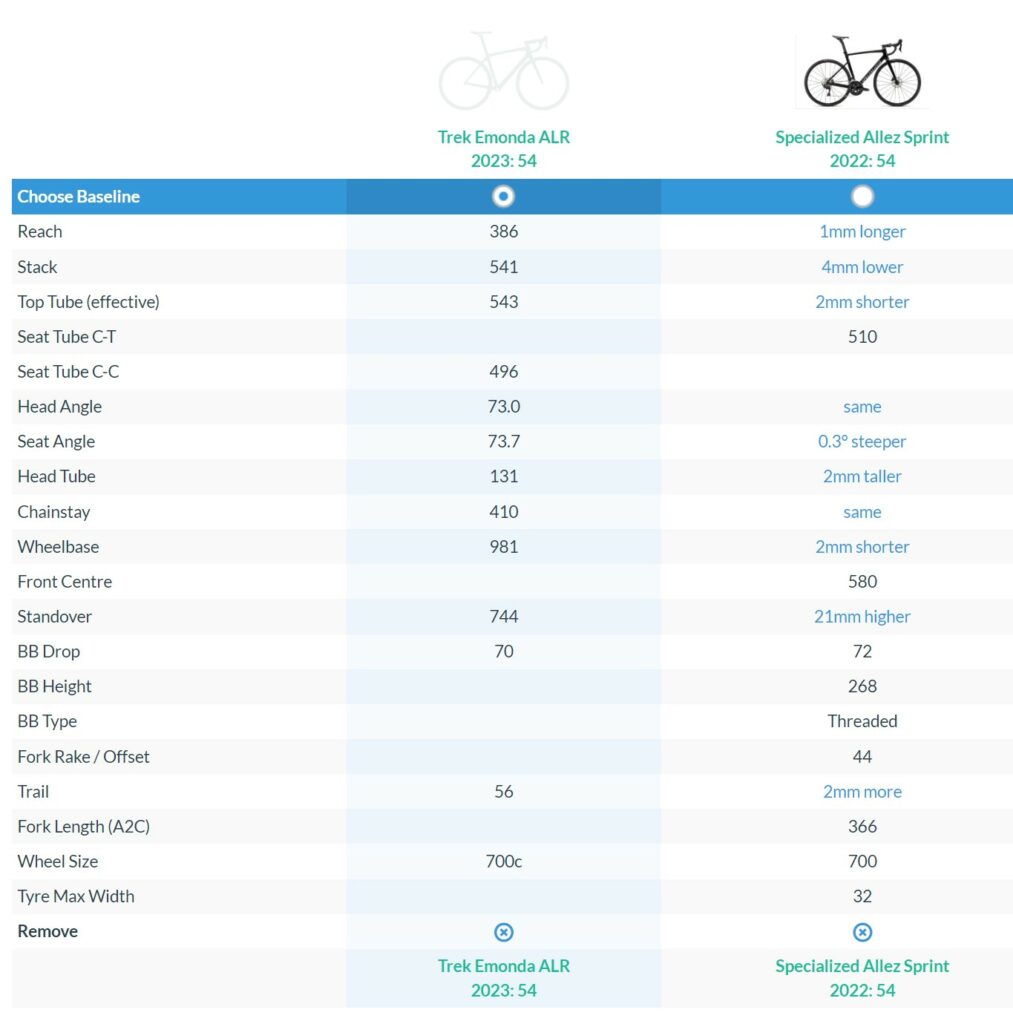

In a size 54cm, you’ll find that the Specialized has a 1mm longer reach, a 4mm lower stack height, and a 2mm shorter wheelbase. If anything then, the Allez is probably the slightly more aggressive bike; but it really is marginal and we’re splitting hairs.

Both bikes also handle very similarly. They have exactly the same headtube angle, which means the steering is all but identical, and just 0.3 degrees difference in seat tube angle means that you get the same level of twitchiness/high-speed stability out of both.

2023 Trek Emonda ALR5 riding shot Jamie road.cc kit

The bottom bracket drop is also very similar on both bikes (that’s the distance between the bottom bracket and an imaginary straight line between the wheel axles). This is often the difference between feeling that you’re sat on the bike or 'in' the bike. It’s 70mm on the Trek and 72mm on the Spesh, making you feel slightly more 'inside' the Allez, but again it's marginal.

If you haven’t gathered by now, the bikes are vastly similar in geometry, and the minor differences that there are can be easily counteracted with different bar, stem and saddle positions. Arguably the biggest difference that I’ve found is the standover height. It’s a whopping 21mm more on the Allez.

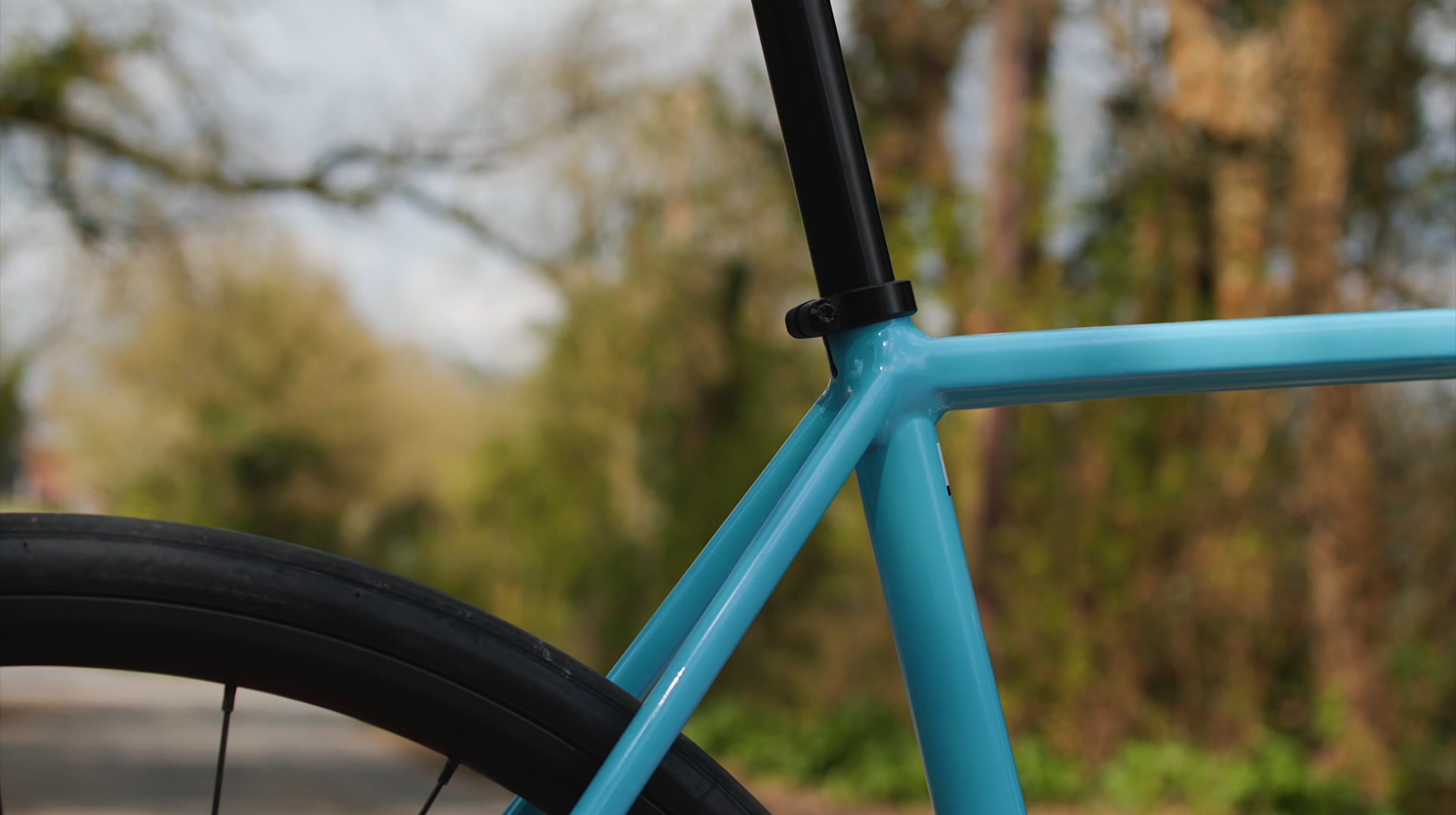

2023 Trek Emonda ALR5 seatpost and welds

This does mean that for the same saddle height, you’ll get more exposed seatpost on the Emonda, which means there’s more space for it to flex. That results in good rear-end comfort, especially with a carbon post.

So, to summarise, you can’t make a decision about which one is best for you based on geometry; but you should be aware that both are pretty aggressive and have the fast handling characteristics nailed. If you’re looking for something more relaxed, cruisy and arguably more comfortable, then you should look at something like a sportive or endurance bike

Weight

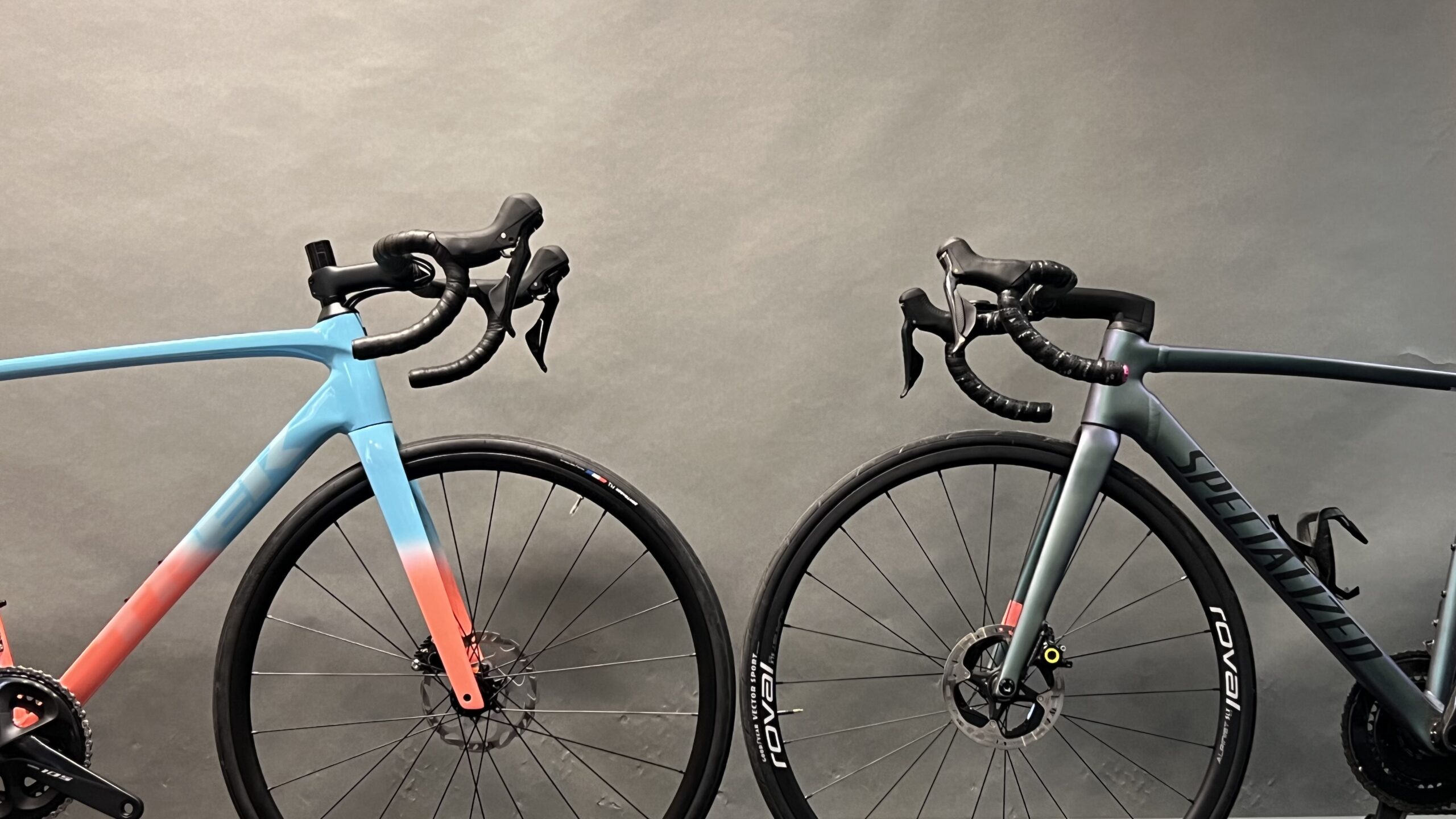

2023 trek Emonda ALR vs Specialized allez sprint alloy bike frames studio

> 8 cheap ways to get a lighter bike — save a kilo or more

Let’s see if we can split the two bikes apart a bit more on the scales. Both claim to have a focus on weight, but this is still an area where you will get a performance advantage from carbon. That said, the bike industry is becoming more and more aware that weight isn’t all it’s cracked up to be unless you’re climbing mountains on the regular.

The framesets are easiest to compare. It's 1,257g for the Trek and then 406g for the fork. This is the painted weight.

The Allez, meanwhile, has a slightly heavier 440g fork, but we weighed our 54cm frame at 1,198g (painted) so slightly lighter. That gives the Spesh a total weight of 1,638g and the Trek is 1,663g. It looks like we’re not splitting them here either.

Tyre clearance and bottom brackets

2023 Trek Emonda ALR5 bb

One area that you will find a difference is with tyre clearance. The new Emonda has a claimed maximum tyre size of 28c, which is actually quite small compared to many recent bikes. The Allez, meanwhile, has a claimed 32mm clearance, so if you’re looking to ride around on larger rubber then there’s a clear winner in this regard.

Does this make a world of difference? Well for many riders, it won’t make the slightest bit of difference. You can still use many of the latest super-wide wheelsets, and most racers I know won’t touch anything wider than a 28mm tyre.

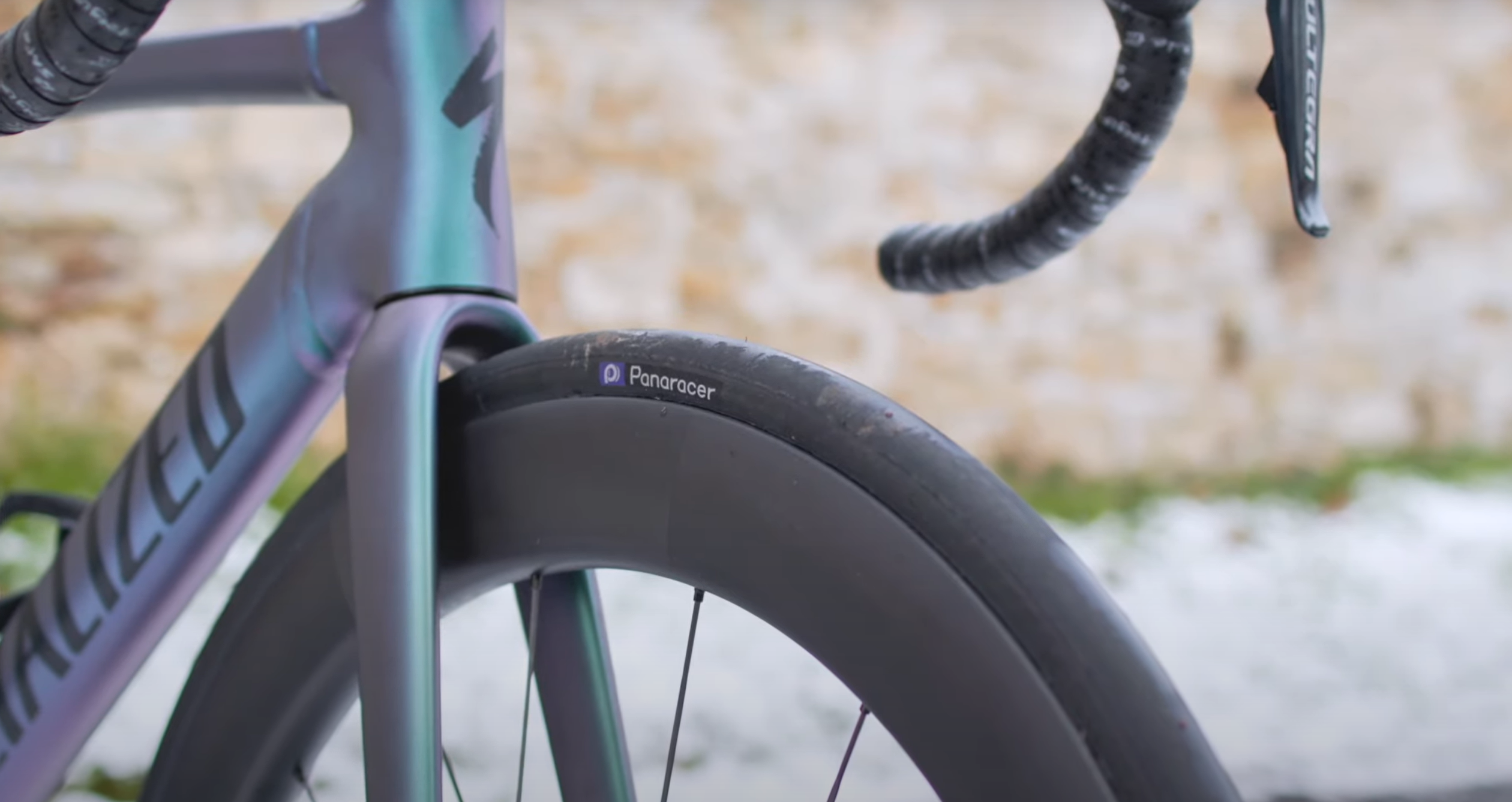

2022 jamie allez front panaracer

> How to choose the best width road tyres for your riding

For me though, this is a contributing factor. I now race on 28mm tyres, but during the winter I’ve been training on a set of 30mm wide tyres. I do have a sneaky suspicion that they would fit in the Trek, but it’s clear that the Allez is the more spacious of the two bikes.

Moving towards the bottom bracket area, and things once again get quite similar. Like on many of the recent bike releases, you’ll find a threaded bottom bracket on both. This is sure to stir up a conversation, but as far as comparisons go they’re pretty similar.

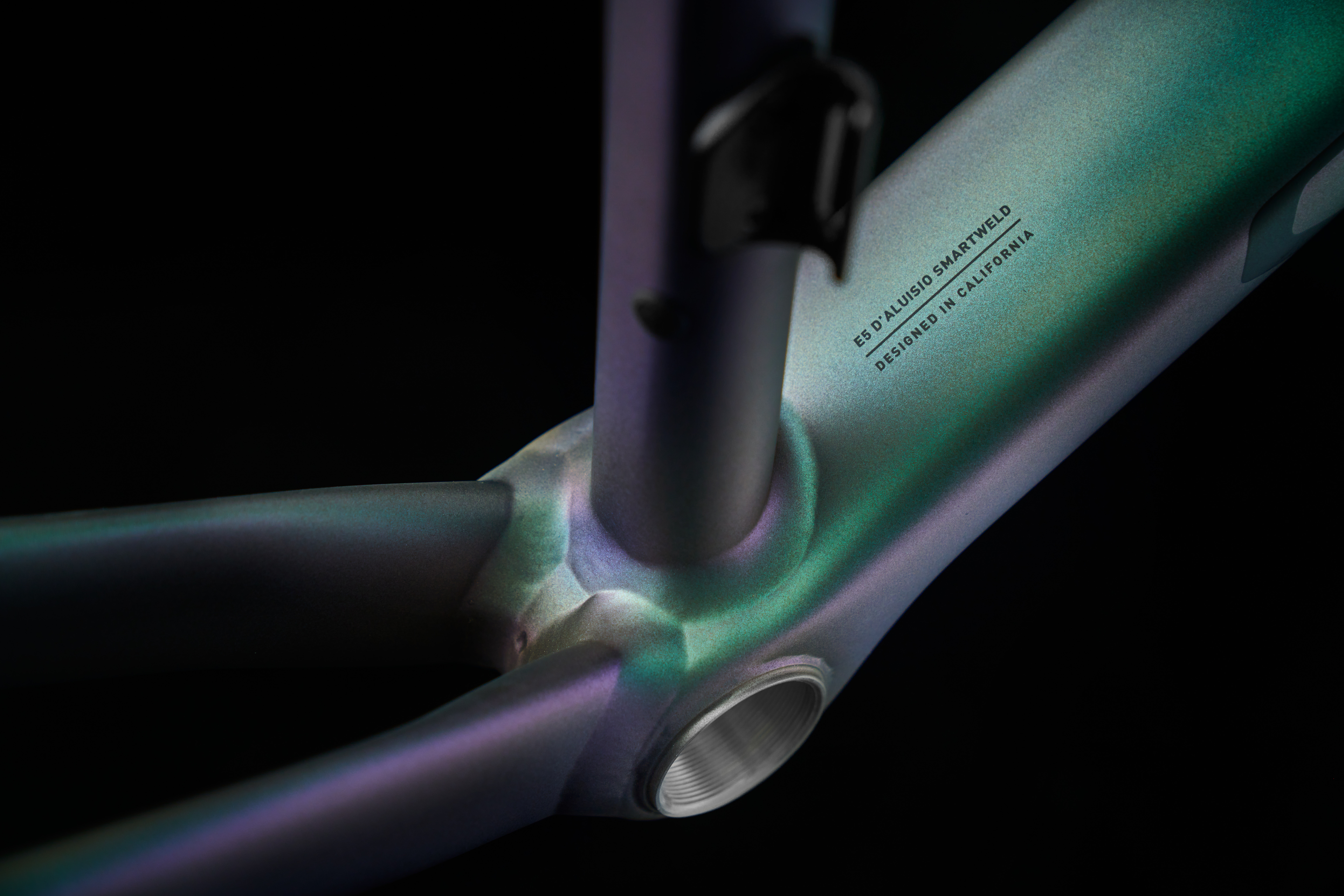

2022 Specialized Allez Sprint bb

> Bottom brackets - get the insider info on your bike's beefiest bearing

Like all of the modern Trek bikes, the Emonda ALR gets a T47 threaded bottom bracket. Like many of the latest Specialized bikes, the Allez Sprint gets a threaded BSA. Is one better than the other> In my experience, no. They both do a very similar job: a bearing cup threads into each side of the frame, and each is compatible with just about every road crankset that you’d want to use, from Shimano Hollowtech to SRAM’s DUB spindles.

Oh and if you’re looking to purchase one of these as a winter race or training bike, then I’m afraid you might be disappointed. Neither has mudguard mounts.

Prices and specifications

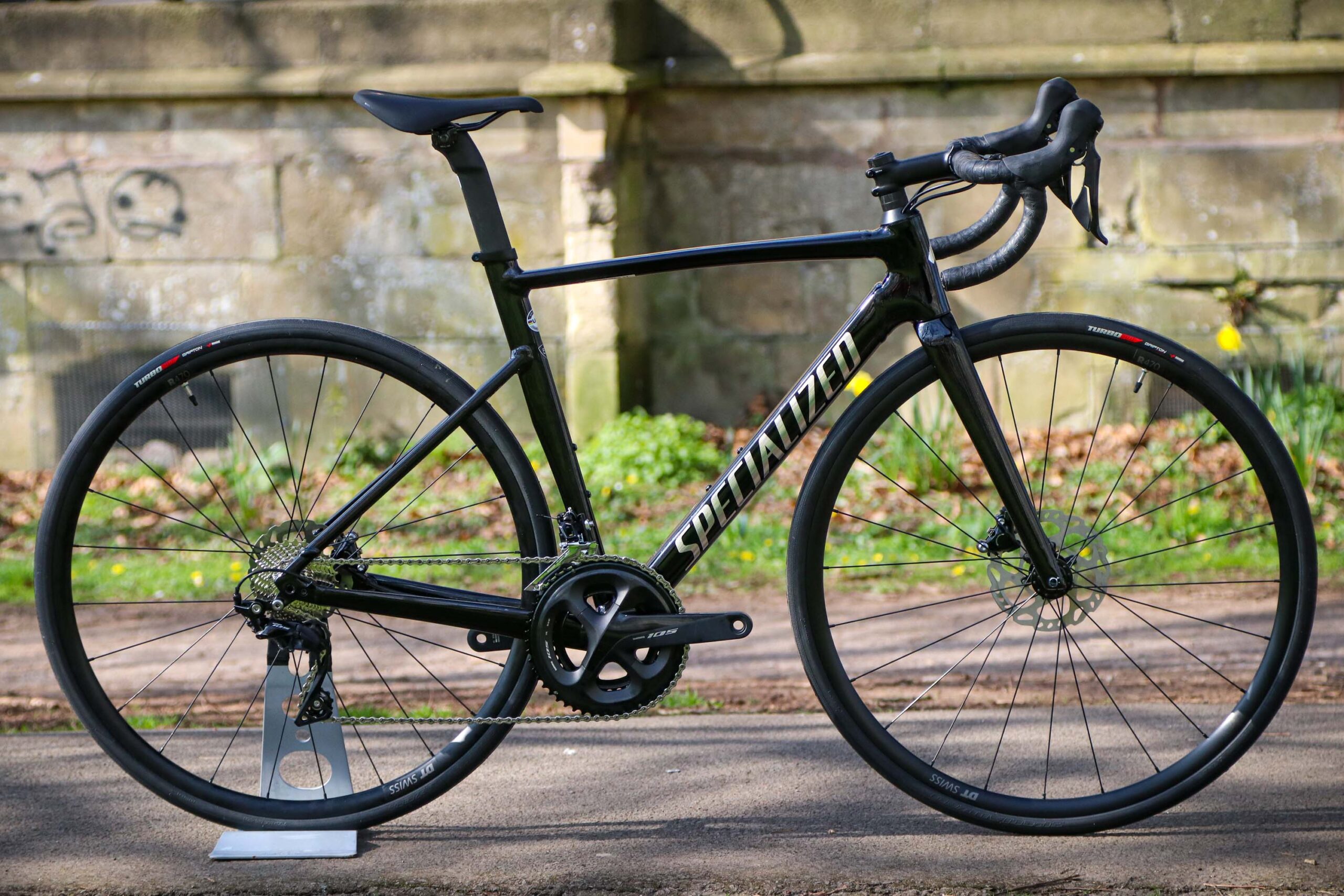

2022 Specialized Allez Sprint Comp.jpg

While all of the above features are very important, there’s obviously going to be one major factor determining most people's bike choice, and that is the price.

So, framesets only first. The Allez comes in at £1,600 and that includes the seatpost, thru-axles and a few bits and bobs in the bag, but not as many as you might expect. You don't get grommets for fitting a Di2 electronic groupset, for example.

The Trek, meanwhile, seriously undercuts that at £1,300; although you will need to factor in a seatpost, as unlike the Allez it doesn’t ship with one. Even so, a decent quality carbon seatpost to fit the standard 27.2mm frame will likely set you back in the region of £100, which still makes the Emonda £200 cheaper than the Allez.

Trek says in its press release that "leaves riders with enough cash to spend on sweet new kits, race registrations and post-ride beers."

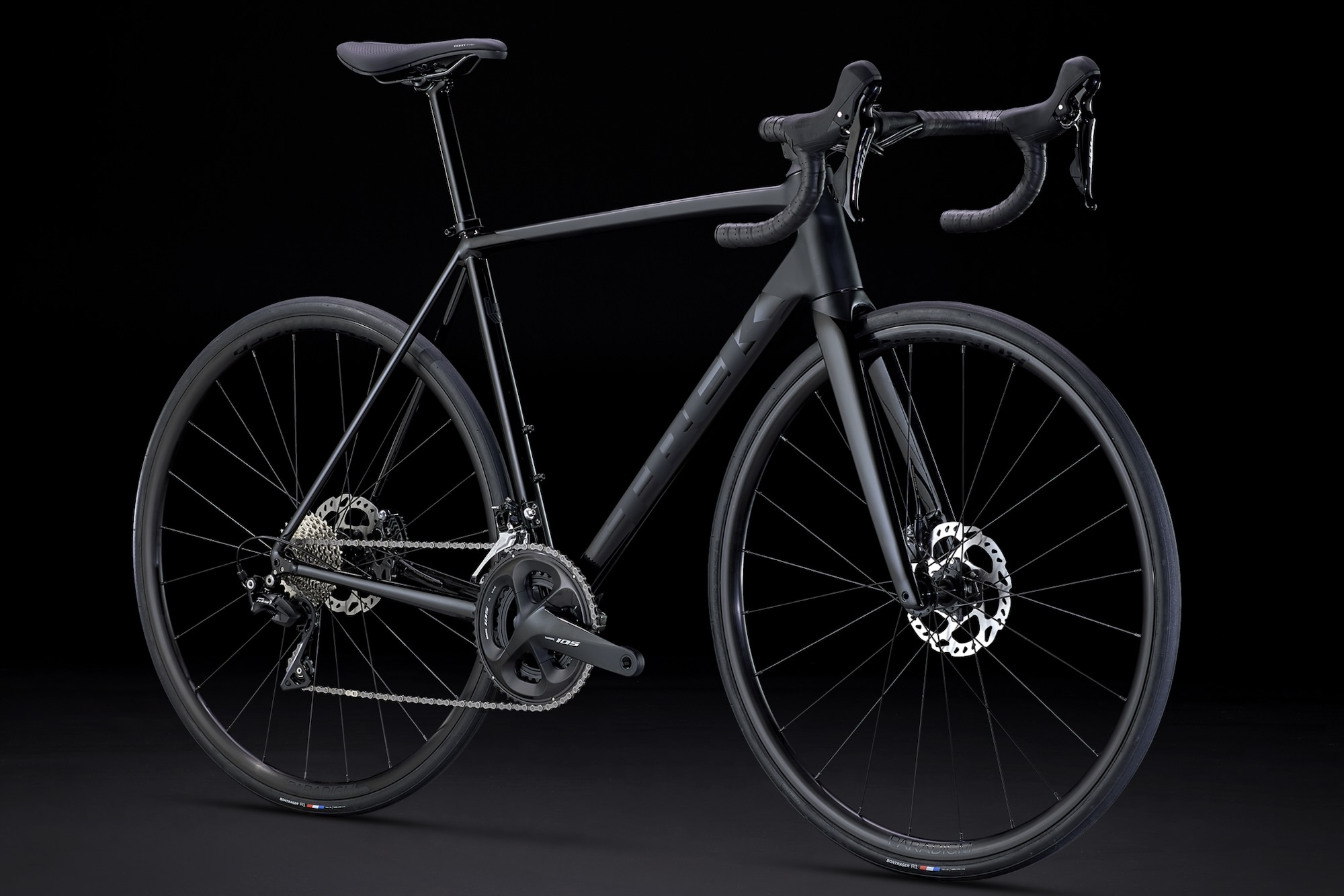

2023 Trek ALR 5 - 1 (2)

However, that’s not the end of the story. Most riders will of course want to purchase an entire bike rather than just a lump of metal. If that’s you, then you’ll be eager to hear that the new Emonda ALR comes in two build specs: the ALR 5 with a Shimano 105 R7000 11-speed mechanical groupset, Bontrager Paradigm SL wheels and a build weight of 8.8kg, and the ALR 6 that has Bontrager Paradigm Comp wheels, a Shimano 105 Di2 groupset and the same 8.8kg weight.

The ALR 5 build is now the lowest in the ALR range, because the ALR 4 has been ditched with this third generation. This means that complete bike builds start at £2,325 for the ALR 5, and the ALR 6 is £3,150.

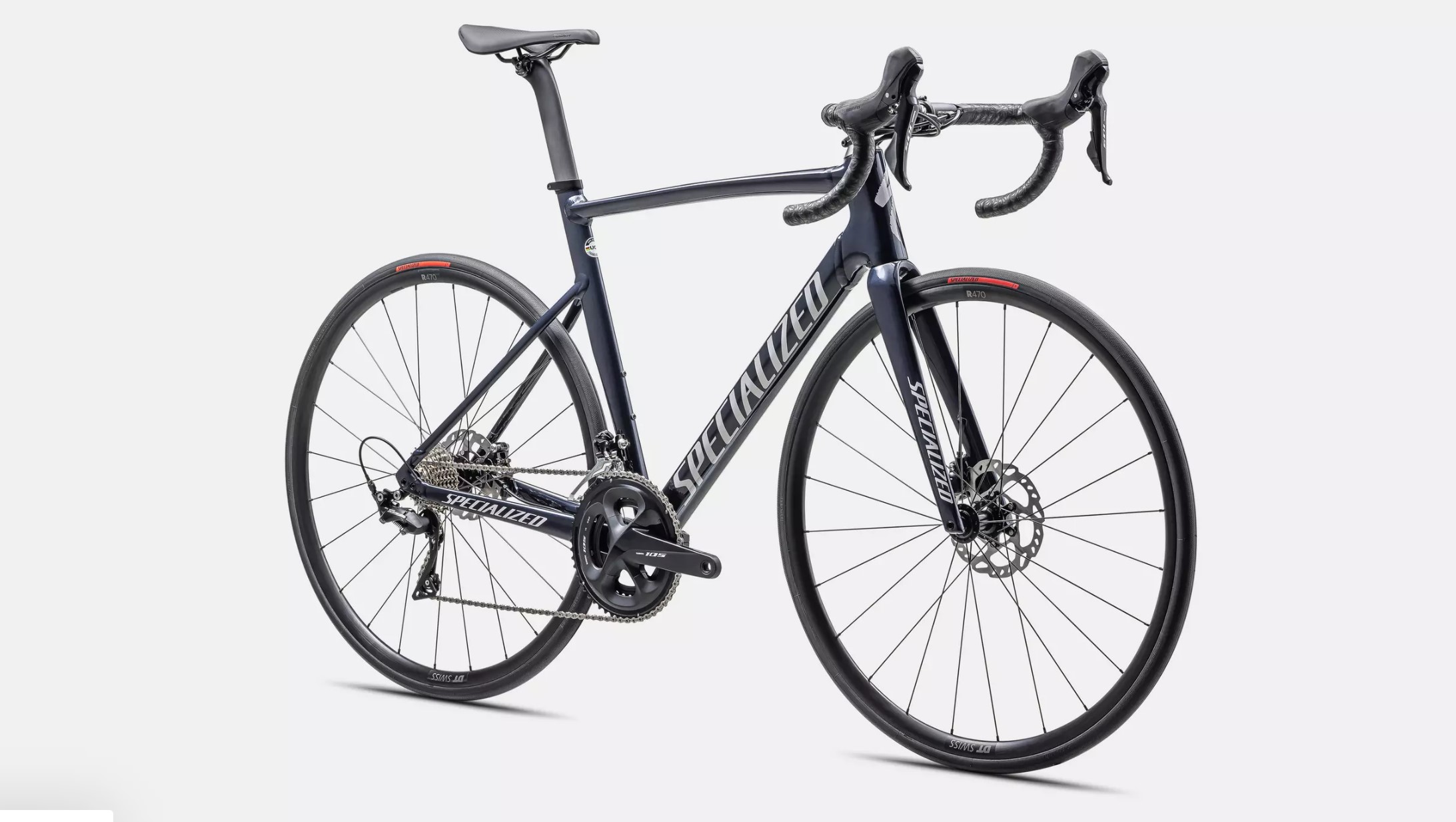

2023 Specialized Allez sprint full build

> Review: Specialized Allez Sprint 2022

Meanwhile, the one and only Allez complete build is very similar to the ALR 5. Once again, the 105 mechanical groupset makes an appearance, and we weighed our review bike at 8.74kg. It currently retails in the UK for £2,600 so once again a little more than the Trek.

Both of those builds are let down by the weighty wheels, and that’s why I’ve switched out the Allez wheels to the new Roval Alpinist SLX wheels. Look out for our alloy wheel super shootout including these very soon to find out the most cost-effective alloy wheel upgrades from the likes of Hunt, Scribe, Mavic and Fulcrum.

Conclusion

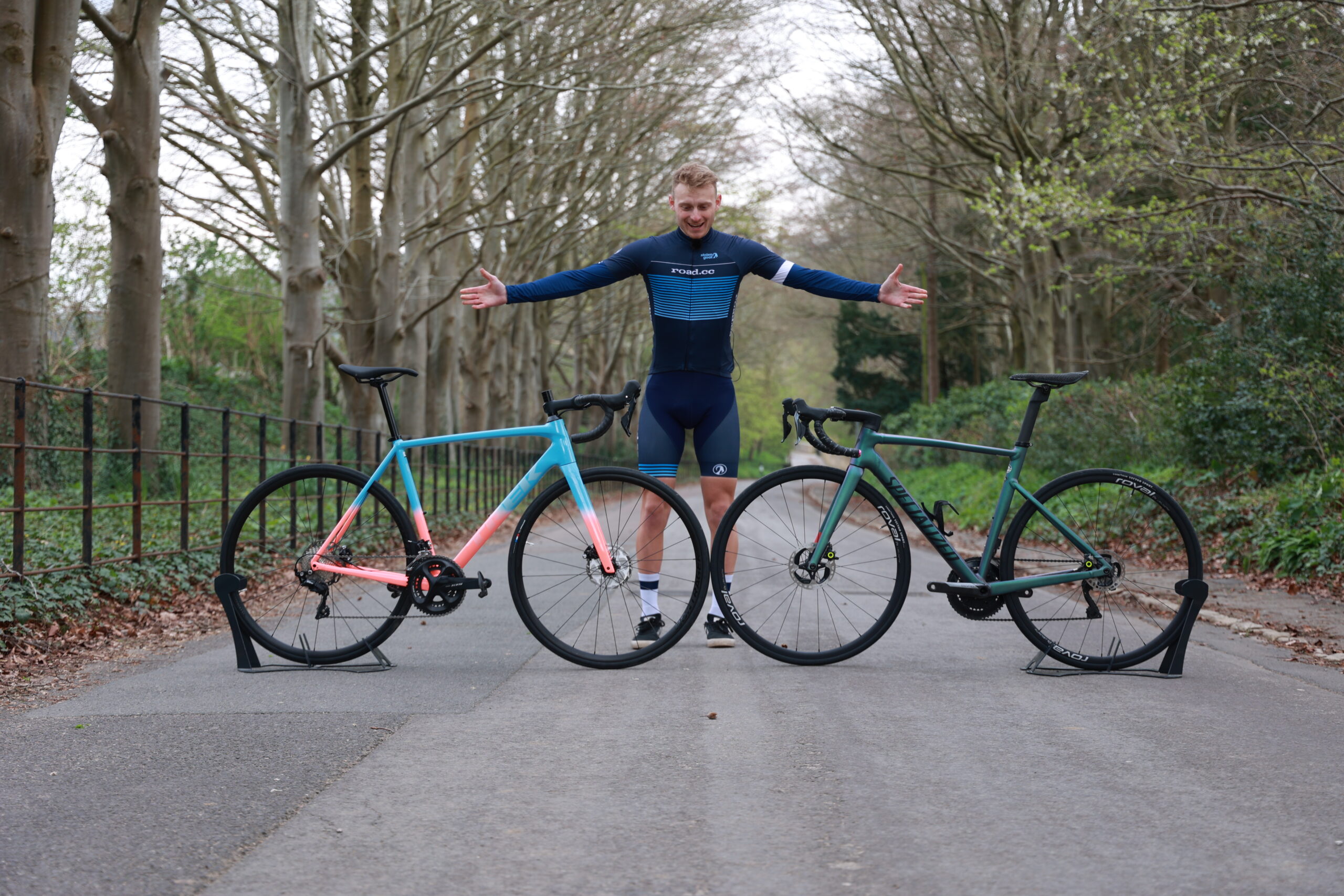

2023 alloy bike test - allez sprint vs emonda alr road.cc kit Jamie

> 2022 Specialized Allez Sprint vs Tarmac SL7: which is best?

So which one would I have? Well, I’ve already got the Allez, and to be honest the Trek is so similar that there’s not a chance I’m going through the hassle of switching the frame out.

The latest Emonda ALR is, however, the first aluminium performance bike that I’ve ridden that can stand shoulder-to-shoulder with the Allez in terms of that get-up-and-go feeling.

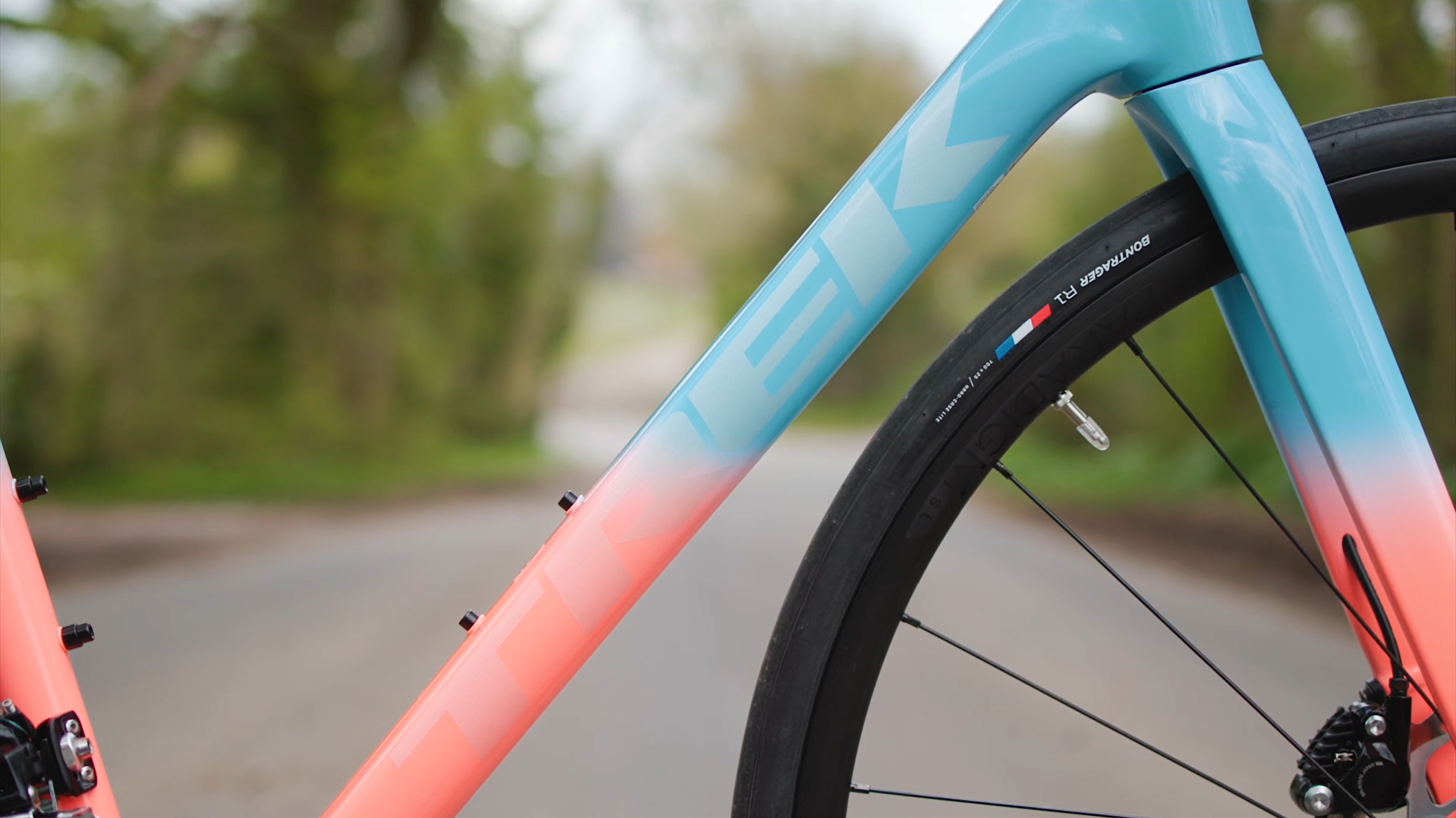

2023 Trek Emonda ALR5 downtube paint fade Trek logo

Its geometry is excellent, as is the ride feel, so as long as you like one of the few colour schemes then the £300 lower price tag makes it a serious consideration. I do think that Trek has missed a trick with the tyre clearance only being 28mm but one thing's for sure... alloy is back!

Look out for our full review of the Trek Emonda ALR5, coming soon. Let us know which one is your favourite in the comments section below...

Jamie has been riding bikes since a tender age but really caught the bug for racing and reviewing whilst studying towards a master's in Mechanical engineering at Swansea University. Having graduated, he decided he really quite liked working with bikes and is now a full-time addition to the road.cc team. When not writing about tech news or working on the Youtube channel, you can still find him racing local crits trying to cling on to his cat 2 licence...and missing every break going...
